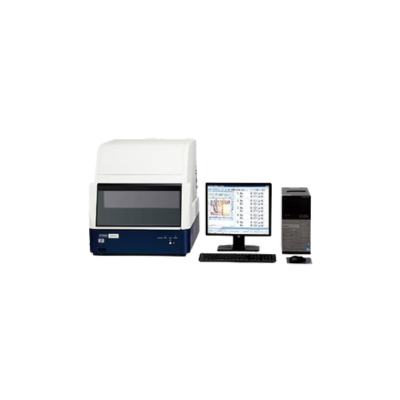

The FT110A XRF Coating Thickness Gauge has a new autofocus function that automatically focuses on the sample to acquire an optical image within a few seconds. No manual adjustment is required, which results in higher throughput.
Applications
Key benefits
- Easy operation
- Precisely measures 50 nm Au coating thickness in 10 seconds
- Measurement without the standard sample
- Easy positioning using the Wide View System (option)
Specs & Applications
- Elements: Atomic Number: 22 (Ti) to 83 (Bi)
- X-ray Tube: Small Air-cooled X-ray tube
- Voltage: 50kV
- Current: 1mA
- Detector: Proportional Counter
- Collimator: Round 0.1mm, 0.2mm and two other types
- Sample Observation: SSD camera (with dual camera wide view system)
- Sample Image Focus: Laser Pointer with auto focus
- Filters: Primary filter with automatic switching
