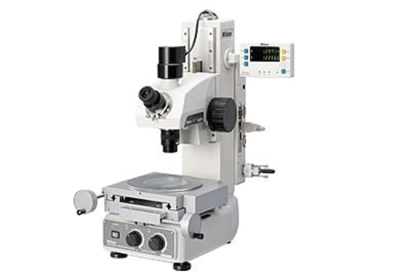

Nikon’s new MM-200 Measuring Microscope is compact and lightweight with an affordable price for all who require precision and accuracy for measuring a variety of metal, plastic, and electronic parts in all industries; especially automotive and electronics. This powerful new microscope is specially designed and engineered with the machining engineers and inspectors in mind.
Compact, space-saving body – The MM-200 features a space-saving design with a footprint of just 420 x 297 mm (main body with monocular eyepiece tube). In addition, the system weighs just 40kg.
New mechanical design for focusing motion control – Focusing motion control mechanics is newly designed to optimize the use of frequently used objective lenses from 1x to 10x.
Built-in stage – No stage installation work is necessary and the footprint has been reduced by 50% compared to existing Nikon MM models.
Eyepiece options – For those who prefer to measure with their own eye, the monocular eyepiece tube is available, while the C-Mount Video Head model provides easy video monitoring.
Contamination protection design – The stage lead screw is sealed in order to protect the MM-200 from contamination generated from the adjacent machinery on the production floor.
High-intensity white light LED – No halogen bulb needs to be changed and light source running cost is reduced since both diascopic and episcopic illuminators employ a high-intensity white LED light source
Digital readouts – The MM-200 can be used with Metronics Quadra-Chek and other 3rd-party digital readouts for Geometric Dimensioning & Tolerancing.
